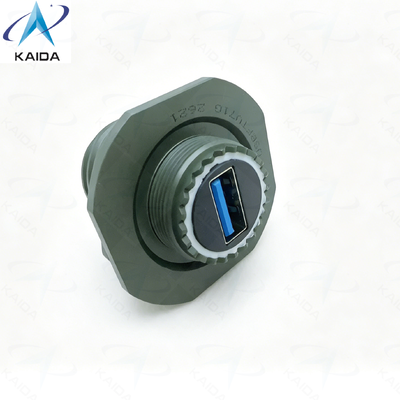

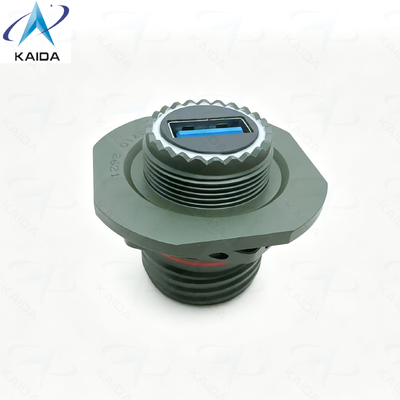

USB 2.0 Cordset Insert Arrangement MIL DTL 38999 Series Ⅲ.USBFTV71G.Square Flange Receptacle

Part number:USBFTV71G

Product Description:

The MIL-DTL-38999 Series Ⅱ is a highly reliable and rugged connector system designed to meet the demanding requirements  and aerospace applications. Specifically, the USBFTV71G part number from this series represents a Square Flange Receptacle featuring an advanced USB Connection System with an Insert Arrangement optimized for USB 2.0 Cordset compatibility. This connector is engineered to deliver exceptional performance, durability, and secure connectivity in harsh environments where reliability is paramount.

One of the standout features of the MIL-DTL-38999 Series Ⅱ USBFTV71G is its robust construction and superior finishing. The connector shell is treated with an Olive Green Cadmium plating which not only provides excellent corrosion resistance but also ensures long-lasting protection against environmental factors such as moisture, salt spray, and extreme temperatures. This Olive Green Cadmium finish is a critical attribute that enhances the connector’s operational lifespan, especially in outdoor or marine applications where exposure to aggressive elements is common.

The Square Flange Receptacle design of the USBFTV71G is tailored for ease of installation and secure mounting. This configuration allows for a stable and firm attachment to panels or equipment surfaces, minimizing the risk of connector movement or disconnection during operation. The flange mount also simplifies maintenance and replacement procedures, reducing downtime in critical systems. Its design conforms to the MIL-DTL-38999 Series Ⅱ specifications, ensuring compatibility and interchangeability with other connectors within the same series.

At the heart of this connector’s functionality lies the USB Connection System, supporting USB 2.0 Cordset arrangements. This insert arrangement supports high-speed data transfer rates up to 480 Mbps, making it ideal for applications requiring fast and reliable USB connections in ruggedized environments. The USB 2.0 Cordset compatibility provides a seamless interface for connecting various USB-enabled devices, including data acquisition systems, communication equipment, and embedded computing modules. This capability greatly enhances system integration and operational efficiency.

The USBFTV71G is engineered with precision to meet stringent  standards, ensuring that it can withstand mechanical shocks, vibrations, and electromagnetic interference. The connector’s design incorporates high-quality materials and advanced manufacturing processes, which collectively contribute to its robustness and reliability. The Olive Green Cadmium finish further complements these characteristics by safeguarding the connector from corrosion and wear, which are common challenges in  industrial applications.

Moreover, the MIL-DTL-38999 Series Ⅱ USBFTV71G offers excellent environmental sealing, protecting the internal contacts and USB insert from dust, dirt, and moisture ingress. This protection is vital for maintaining the integrity of the USB Connection System, ensuring uninterrupted data transmission and power delivery even in the most challenging conditions. The connector’s sealing capabilities align with the stringent requirements of MIL-STD-810, making it suitable for deployment in airborne, ground, and naval platforms.

In summary, the MIL-DTL-38999 Series Ⅱ USBFTV71G Square Flange Receptacle with Olive Green Cadmium finish is a superior connector solution for applications demanding a rugged USB Connection System. Its combination of durable construction, corrosion-resistant shell finish, secure mounting design, and USB 2.0 Cordset insert arrangement provides a reliable and efficient interface for critical  aerospace equipment. Whether used in communications, data transfer, or control systems, this connector ensures optimal performance and longevity, making it an essential component in any high-reliability environment.

Features:

• Product Name: MIL-DTL-38999 Series Ⅱ
• Operating Temperature: -55°C To +85°C
• Gender: Square Flange Receptacle
• Connector Type: Circular
• Shell Finish: Olive Green Cadmium
• Model Number: USBFTV71G
• Durable Olive Green Cadmium shell finish for corrosion resistance
• Reliable USBFTV71G connector designed for harsh environments

Technical Parameters:

Applications:

The KAIDA MIL-DTL-38999 Series Ⅱ, model number USBFTV71G, is a highly reliable and durable connector designed for demanding environments. Originating from China, this product is engineered to meet rigorous  standards, ensuring optimal performance in critical applications. With a voltage rating of 500V and an operating temperature range from -55°C to +85°C, it is perfectly suited for use in harsh conditions where stability and dependability are paramount. The Olive Green Cadmium shell finish not only enhances corrosion resistance but also provides a tactical, low-visibility appearance, ideal for aerospace use.

The MIL-DTL-38999 Series Ⅱ connectors are widely used in defense, aerospace, and industrial sectors, where secure, high-density connections are essential. These connectors are often employed in avionics, ground vehicles, and communication systems, providing robust performance under extreme environmental stress. The square flange receptacle design ensures easy mounting and reliable mechanical stability, making it suitable for both fixed installations and mobile platforms.

In addition to the Series Ⅱ, KAIDA also offers the MIL-DTL-38999 Series Ⅲ connectors, which share many of the same rugged features but include enhancements for even higher performance in more demanding scenarios. Applications for the MIL-DTL-38999 Series Ⅲ typically include next-generation aircraft, advanced radar systems, and secure communication networks, where the Olive Green Cadmium finish and square flange receptacle design contribute to durability and operational efficiency.

Typical application occasions for the USBFTV71G model include many  field operations, aerospace missions, and industrial automation processes. The combination of a 500V voltage rating and a wide operating temperature range ensures that the MIL-DTL-38999 Series Ⅱ can withstand electrical and thermal stresses encountered in these environments. The robust construction and precise engineering make it an ideal choice for scenarios requiring long-lasting, maintenance-free connections.

Overall, the MIL-DTL-38999 Series connectors from KAIDA, including both Series Ⅱ and Series Ⅲ, provide unparalleled reliability and versatility. Their Olive Green Cadmium shell finish and square flange receptacle design not only meet but exceed the rigorous demands of  aerospace applications, making them indispensable components in mission-critical systems worldwide.

Customization:

KAIDA offers comprehensive product customization services for the MIL-DTL-38999 Series Ⅱ, model number USBFTV71G. This high-quality circular connector is designed with a USB 2.0 cordset insert arrangement, ensuring reliable and efficient data transfer. The USBFTV71G features a robust square flange receptacle gender type, providing secure and stable mounting for various applications. With an olive green cadmium shell finish, this connector combines durability with corrosion resistance, suitable for demanding environments. Manufactured in China, the MIL-DTL-38999 Series Ⅱ USBFTV71G connector can be tailored to meet specific requirements, making it an ideal choice for customers seeking customized circular connector solutions.
